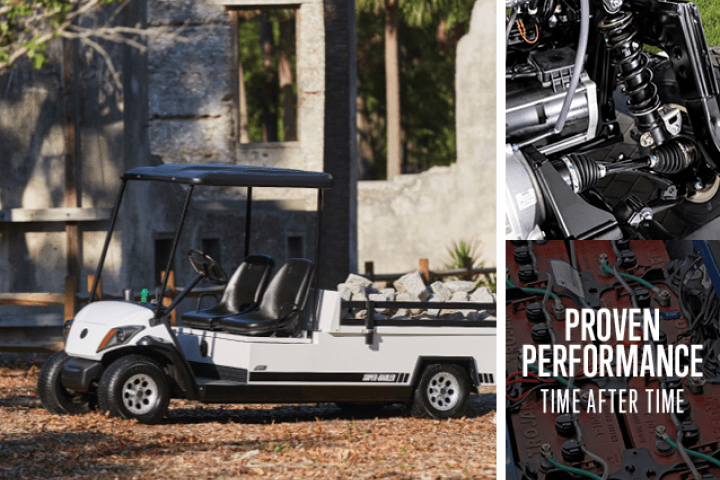

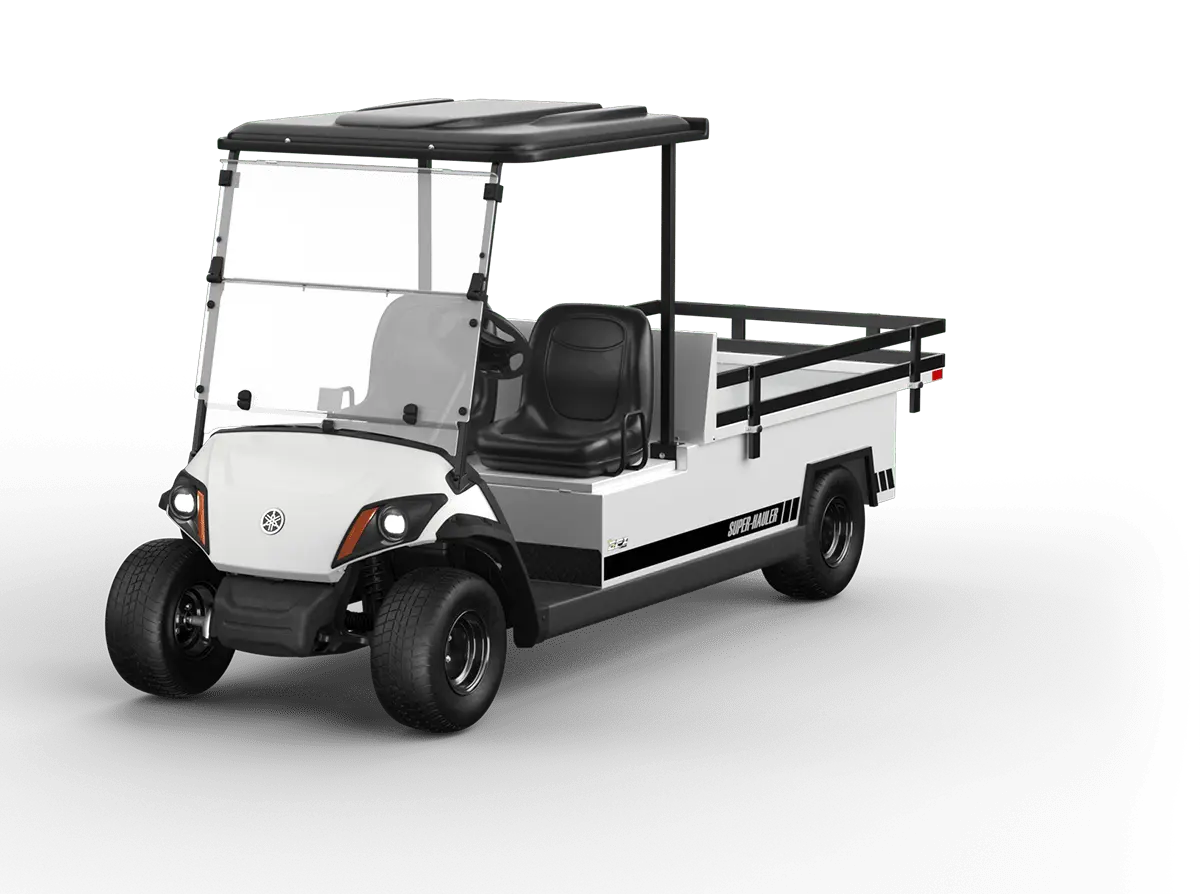

Adventurer Super Hauler

Whether you’re replacing water heaters, or setting up for the day’s big event, this extra-large hauler will lighten your load. With durable, low-maintenance engineering, and a super-sized aluminum cargo bed, it’ll save you more than a few trips, not to mention headaches.

  • Fuel System:Electronic Fuel Injection
  • IGNITION SYSTEM:Transistor
  • ENGINE TYPE:Yamaha-built, 357 cc, low-emission single cylinder 60° incline OHV
  • BORE x STROKE:85 x 63 mm
  • COMPRESSION RATIO:8:1
  • OIL CAPACITY:1 liter, 1000 cc (1 U.S. quart) liter
  • AIR CLEANER:Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
  • COOLING SYSTEM:Forced Cooling
  • MAXIMUM TORQUE:25.5/2500 (Nm/rpm)
  • STARTING SYSTEM:Starter/Generator
  • MOTOR:48-volt AC Motor
  • OUTPUT RATING:6.7 hp for 60 minutes
  • MOTOR CONTROL UNIT:NEOS 350 amp AC controller by Toyota Industries Corporation
  • BATTERIES:Standard: Six 8-volt Trojan T-875 Batteries with HydroLink Watering System Optional: Eight 6-volt Trojan T-105 Batteries
  • CHARGER:YAMAHA-built automatic microprocessor-based high frequency switching regulated charger.
Learn more about PowerTech AC
Overall Length
142.9 in (363 cm)
Overall Width
53.5 in (136 cm)
Overall Height(without suntop)
48.8 in (124 cm)
Wheelbase
98.0 in (249 cm)
Front Wheel Tread
34.6 in (88 cm)
Rear Wheel Tread
38.2 in (97 cm)
Floor Board Height
13.4 in (34 cm)
FRAME
HybriCore™ Chassis features a robotically welded automotive ladder-style frame mated to a polypropylene structural floor. Frame components are protectedwith a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatically applied polyester/urethane powder topcoat
BODY
Mold-in Polypropylene for Glacier Color
STEERING
Self-compensating double reduction helical rackand- pinion
FRONT WHEEL SUSPENSION
Tru-Trak II™ fully independent automotive-style strut suspension
REAR WHEEL SUSPENSION
Fully independent automotive-style strut suspension
BRAKES
Self-adjusting mechanical, rear wheel drum brakes
SEATING
Bucket
BUMPERS
Front 5 mph energy-absorbing bumper
Maximum Forward Speed
15 MPH (24 km/h)
Hill climbing capacity
20°
Minimum turning radius
9.2 FT (2.8 m)
Fuel consumption on flat paved road
45 MPG
Maximum Forward Speed
15 MPH (24 km/h)
Hill climbing capacity
20°
Minimum turning radius
9.2 FT (2.8 m)
Dry Weight
Gas EFI: 405 kg (893 lbs) Electric AC (less batteries): 344 kg (758 lbs)
CARGO BED CAPACITY
363 kg (800 lbs) Gas181 kg (400 lbs) for model with standard Hitachi motor and 270 amp motor control unit
CARGO BED SIZE
70 in (177.9 cm) L x 47.0 in (119.4 cm) W x 7.8 in (20.0 cm) H
FUEL TANK CAPACITY (Gas)
22.0 liters (5.8 U.S. gal)
TIRE SIZE
205/65-10 DOT (4 ply rating)
SEATING CAPACITY
2 Persons
AVAILABLE MODEL COLORS
Glacier
AVAILABLE SEAT COLOR
STANDARD: Black OPTIONAL: Stone
AVAILABLE SUNTOP COLOR
Black
Standard 2-year limited vehicle warranty
