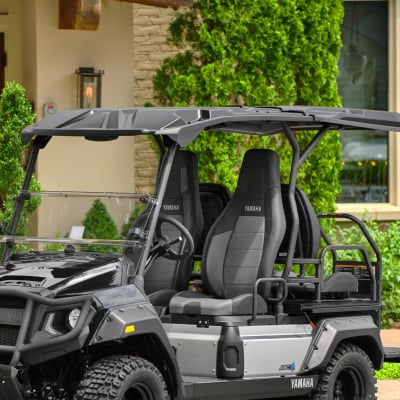

UMAX Rally™ 2+2

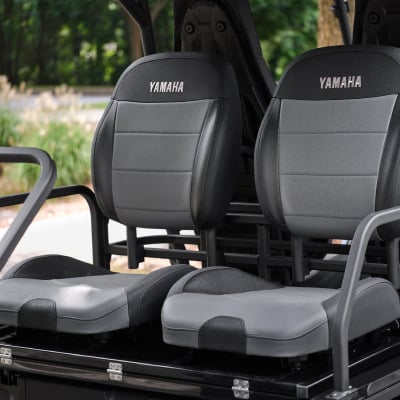

On or off the course, we continuously strive to bring you the best. And this time, we’ve taken the power and performance you trust and fused it with the ultimate in comfort. Introducing the UMAX Rally™ 2+2, our newest utility car featuring a completely redesigned rear-facing seat kit with large bucket seats. Now you can tackle any terrain with complete ease. Take the family out on an adventure or cruise around town and, when you need more room for your gear, the convertible fold-down seat creates a convenient surface space. UMAX Rally 2+2, another reason why Yamaha is The Easy Choice.™

  • Fuel System:Electronic fuel injection
  • ENGINE TYPE:Yamaha Built 402cc, Low Emission Single Cylinder 60deg Incline OHV
  • LUBRICATION SYSTEM:Splash-style positive oil lubrication
  • OIL CAPACITY:1.16 U.S. quart (1.1 liter, 1100cc), Yamalube 10W-30 liter
  • COOLING SYSTEM:Forced air
  • STARTING SYSTEM:Starter generator with pedal start system
  • MOTOR:48-volt AC
  • OUTPUT RATING:6.7 hp (5.0 kW FOR 60 minutes)
  • MOTOR CONTROL UNIT:NEOS 350 amp AC controller by Toyota Industries Corporation
  • BATTERIES:Standard: Eight 6-volt Trojan T-105 Batteries
Learn more about PowerTech AC
Overall Length
134.37 in (341.3 cm)
Overall Width
53.54 in (136 cm)
Overall Height(with suntop)
77.20 in (196.1 cm)
Overall Height(without suntop)
57.48 in (146 cm)
Wheelbase
77.28 in (196.3 cm)
Front Wheel Tread
41.26 in (104.8 cm)
Rear Wheel Tread
41.26 in (104.8 cm)
Minimum Ground Clearance
5.94 in (15.1cm)
FRAME
HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat
BODY
Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade polyurethane
STEERING
Self-compensating double reduction helical rack-and-pinion
FRONT WHEEL SUSPENSION
Tru-Trak II™ fully independent automotive-style strut suspension
REAR WHEEL SUSPENSION
Unit swing arm with heavy duty coil springs over hydraulic shock absorbers
BRAKES
Self-adjusting mechanical, front and rear wheel drum brakes
Maximum Forward Speed
15 mph (24.1 km/h)
Maximum Reverse speed
6.2 mph (10 km/h)
Minimum turning radius
3.98m
Maximum Forward Speed
15 mph (24.1 km/h)
Maximum Reverse speed
6.2 mph (10 km/h)
Minimum turning radius
3.98m
Dry Weight
EFI: 1321 lb (599 kg) AC: 1212 lb (550 kg)
TOWING CAPACITY
1,200 lb
FUEL TANK CAPACITY (Gas)
5.2 US GAL (20 LITERS)
TIRE SIZE
23x10.5-12 4-ply Monitor K389 (front) K500 (rear)
SEATING CAPACITY
Four persons
AVAILABLE MODEL COLORS
Glacier Metallic: Jasper, Carbon, Aqua Blue, Noble Orange, Evergreen
AVAILABLE SEAT COLOR
Black
AVAILABLE SUNTOP COLOR
Black
Standard 2-year limited vehicle warranty
