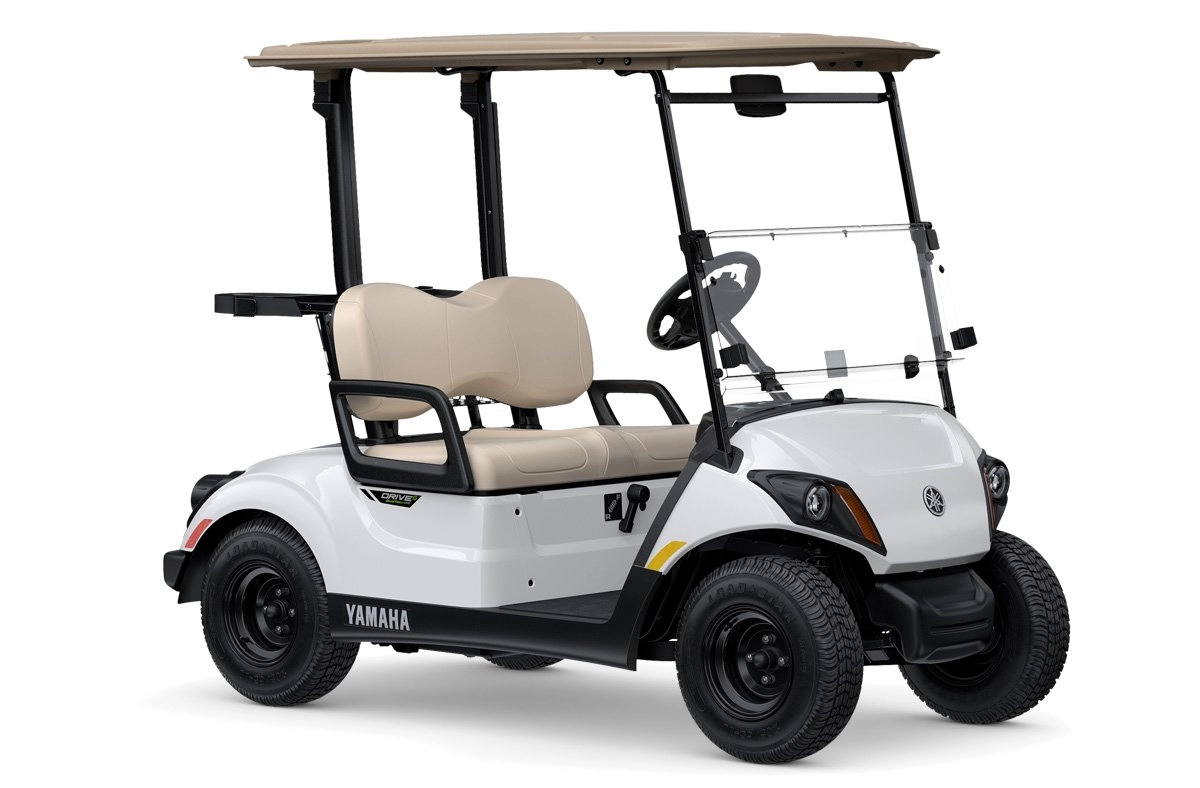

2027 DRIVE² PTV
SPECIFICATIONS
GENERAL
| Seating Capacity |
2 persons |
CHASSIS
| Suspension (Front) |
Tru-Trak II™ fully independent automotive-style strut suspension. |
| Suspension (Rear) |
Fully independent automotive-style strut suspension. |
| Brakes |
Self-adjusting mechanical, rear wheel drum brakes. |
| Tire Size |
205/65-10 DOT (4 ply rating) |
| Frame |
HybriCore™ Chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electrodeposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat. |
| Steering |
Self-compensating double reduction helical rack-and-pinion. |
DIMENSIONS
| Overall Length |
93.6 in (238 cm) |
| Overall Width |
47.3 in (120 cm) |
| Overall Height With Suntop |
70.2 in (178 cm) |
| Wheelbase |
64.4 in (164 cm) |
| Wheel Tread (Front) |
35 in (89 cm) |
| Wheel Tread (Rear) |
38.7 in (98 cm) |
| Floor Board Height |
12.9 in (33 cm) |
| Curb Weight*** |
787 lbs. (357 kg) |
| Dry Weight |
751 lbs. (341kg) |
PERFORMANCE
| Max Forward Speed |
19.0 mph (31 km/h) |
| Min Turning Radius |
9.5 ft (2.9 m) |
ENGINE
| Fuel System |
EFI - Electronic Fuel Injection |
| Engine Type |
Yamaha-built, 357 cc, low-emission single cylinder 60° incline OHV |
| Lubrication System |
Splash-style positive oil lubrication |
| Oil Capacity |
1 U.S. quart (1 liter, 1,000 cc) |
| Air Cleaner |
Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge |
| Cooling System |
Forced Cooling |
| Starting System |
Starter generator with pedal start system |
OTHER
| Available Model Colors |
In-Mold: Glacier, Armor Gray; Painted: Red, Bluestone |
| Available Seat Colors |
Standard: Stone Optional: Black |
| Available SunTop Colors |
Standard: Stone Optional: Black |
| Warranty |
Standard 4-year limited vehicle warranty |
*Manufacturer's Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Curb Weight/Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
