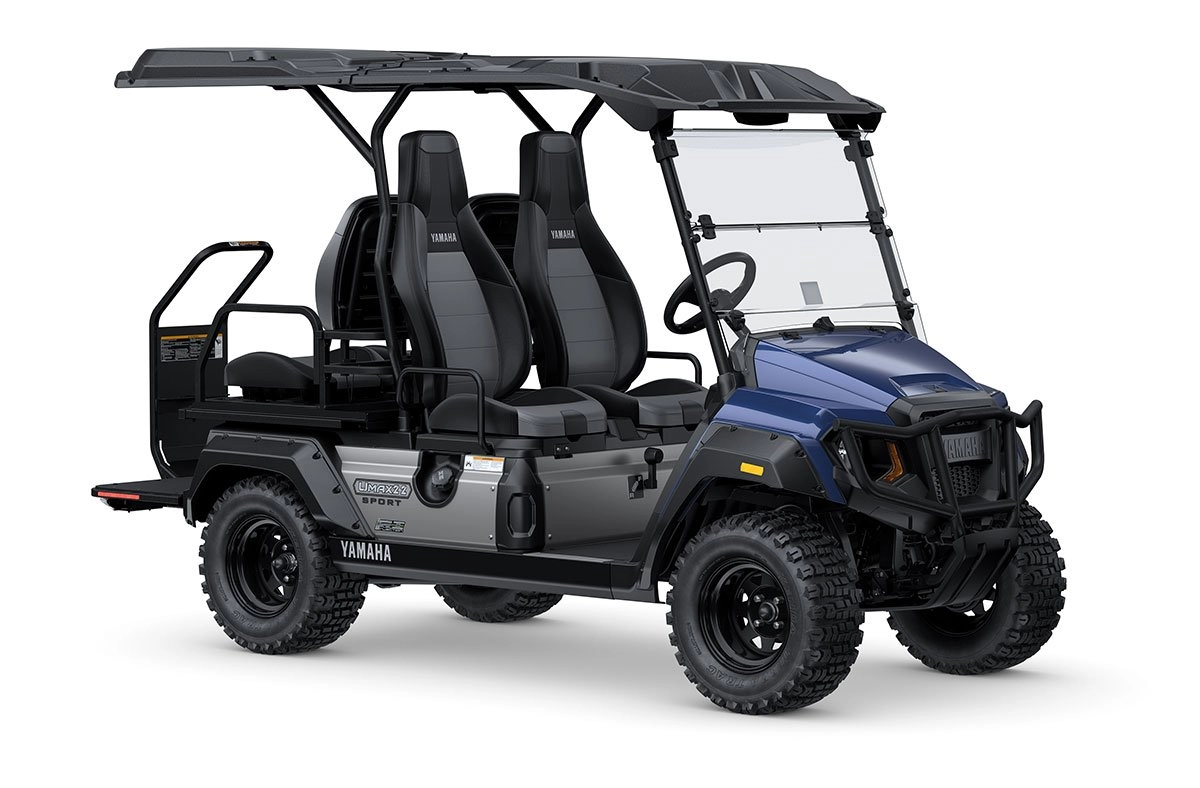

2027 UMAX RALLY SPORT 2+2
SPECIFICATIONS
GENERAL
| Seating Capacity |
4 persons |
CHASSIS
| Suspension (Front) |
Tru-Trak II™ fully independent automotive-style strut suspension. |
| Suspension (Rear) |
Unit swing arm with DUAL RATE coil springs over hydraulic shock absorbers. |
| Brakes |
Self-adjusting mechanical, front and rear wheel drum brakes. |
| Tire Size |
23x10.5-12 4-ply Monitor K389 (front) K500 (rear) |
| Frame |
HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat. |
| Steering |
Self-compensating double reduction helical rack-and-pinion. |
DIMENSIONS
| Overall Length |
134.37 in (341.3 cm) |
| Overall Width |
53.54 in (136 cm) |
| Overall Height |
53.54 in (136 cm) |
| Overall Height With Suntop |
77.20 in (196.1 cm) |
| Wheelbase |
77.4 in (196 cm) |
| Wheel Tread (Front) |
41.26 in (104.8 cm) |
| Wheel Tread (Rear) |
41.26 in (104.8 cm) |
| Curb Weight*** |
1,367 lbs. (620 kg) |
PERFORMANCE
| Max Forward Speed |
19.5 mph (31.4 km/h) |
| Max Reverse Speed |
11.2 mph (18 km/h) |
| Min Turning Radius |
4.0 m (13.1 ft) |
| Fuel Capacity |
5.2 US GAL (20 liters) |
ENGINE
| Fuel System |
EFI - Electronic Fuel Injection |
| Engine Type |
Yamaha-built, 402 cc, low-emission single cylinder 60° incline OHV |
| Lubrication System |
Splash-style positive oil lubrication |
| Oil Capacity |
1.16 U.S. quart (1.1 liter, 1100cc) |
| Air Cleaner |
Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge |
| Cooling System |
Forced Cooling |
| Starting System |
Starter generator with pedal start system |
OTHER
| Available Model Colors |
Bourbon, Bluestone |
| Available Seat Colors |
Black |
| Available SunTop Colors |
Black |
*Manufacturer's Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Curb Weight/Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
