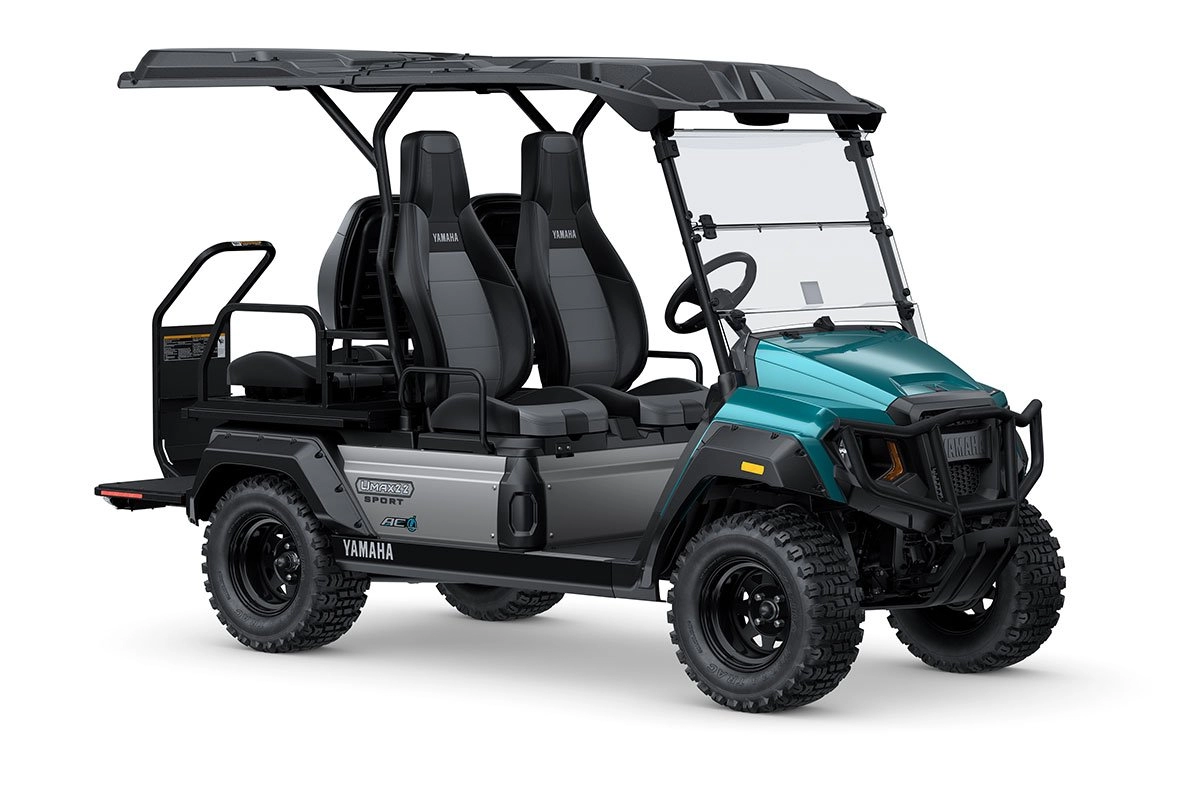

2027 UMAX RALLY SPORT 2+2
SPECIFICATIONS
GENERAL
| Towing Capacity |
1,200 lbs |
| Seating Capacity |
4 persons |
CHASSIS
| Suspension (Front) |
Tru-Trak II™ fully independent automotive-style strut suspension. |
| Suspension (Rear) |
Unit swing arm with DUAL RATE coil springs over hydraulic shock absorbers. |
| Brakes |
Self-adjusting mechanical, front and rear wheel drum brakes. |
| Tire Size |
23x10.5-12 4-ply Monitor K389 (front) K500 (rear) |
| Frame |
HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat. |
| Steering |
Self-compensating double reduction helical rack-and-pinion. |
DIMENSIONS
| Overall Length |
134.37 in (341.3 cm) |
| Overall Width |
53.54 in (136 cm) |
| Overall Height |
53.54 in (136 cm) |
| Overall Height With Suntop |
77.20 in (196.1 cm) |
| Wheelbase |
77.28 in (196.3 cm) |
| Wheel Tread (Front) |
41.26 in (104.8 cm) |
| Wheel Tread (Rear) |
41.26 in (104.8 cm) |
| Curb Weight*** |
1,363 lbs. (618 kg) |
PERFORMANCE
| Max Forward Speed |
19.5 mph (31.4 km/h) |
| Max Reverse Speed |
6..2 mph (10 km/h) |
| Min Turning Radius |
4.0 m (13.1 ft) |
| Hill Climbing Capacity |
15° |
ENGINE
| Motor |
48-volt AC |
| Batteries |
RoyPow S51105PE (51-Volt) |
| Motor Control Unit |
NEOS 350 amp AC controller by Toyota Industries Corporation |
| Output Rating |
6.7 hp (5.0 kW FOR 60 minutes) |
OTHER
| Available Model Colors |
Coral Red, Bikini Blue |
| Available Seat Colors |
Black |
| Available SunTop Colors |
Black |
*Manufacturer's Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Curb Weight/Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
