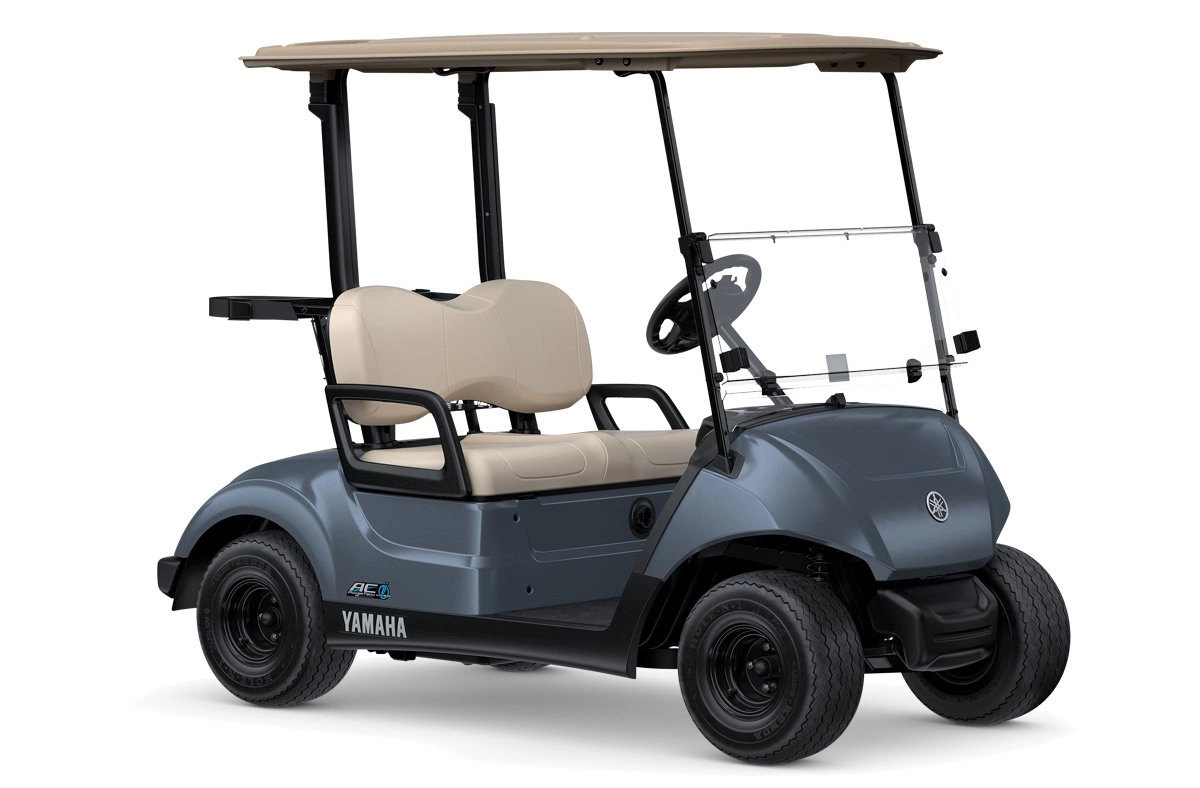

2027 DRIVE² FLEET
SPECIFICATIONS
GENERAL
| Seating Capacity |
2 persons |
CHASSIS
| Suspension (Front) |
Tru-Trak II™ fully independent automotive-style strut suspension. |
| Suspension (Rear) |
Fully independent automotive-style strut suspension. |
| Brakes |
Self-adjusting mechanical, rear wheel drum brakes. |
| Tire Size |
18 x 8.5 - 8 (4-ply rating) |
| Frame |
HybriCore™ Chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat. |
| Steering |
Self-compensating double reduction helical rack-and-pinion. |
DIMENSIONS
| Overall Length |
93.6 in (238 cm) |
| Overall Width |
47.6 in (121 cm) |
| Overall Height With Suntop |
70.2 in (178 cm) |
| Wheelbase |
64.4 in (164 cm) |
| Wheel Tread (Front) |
35 in (89 cm) |
| Wheel Tread (Rear) |
38.6 in (98 cm) |
| Floor Board Height |
12.9 in (33 cm) |
| Min Ground Clearance |
4.9 in (12.4 cm) |
| Curb Weight*** |
752 lb (341.3 kg) |
| Dry Weight |
617.3 lb (280 kg) |
PERFORMANCE
| Max Forward Speed |
15.0 mph (24 km/h) |
| Min Turning Radius |
9.2 ft (2.8 m) |
ENGINE
| Motor |
48-volt AC Motor |
| Batteries |
One Lithium Ion Battery |
| Motor Control Unit |
Toyota® Industries-built motor controller unit. |
| Output Rating |
4.4 hp (3.3 kW) |
| Charger |
Delta-Q Charger |
OTHER
| Available Model Colors |
Painted: Bluestone, Arsenal Red |
| Available Seat Colors |
Standard: Stone Optional: Black |
| Available SunTop Colors |
Standard: Stone Optional: Black |
| Warranty |
Standard 4-year limited vehicle warranty |
*Manufacturer's Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Curb Weight/Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
