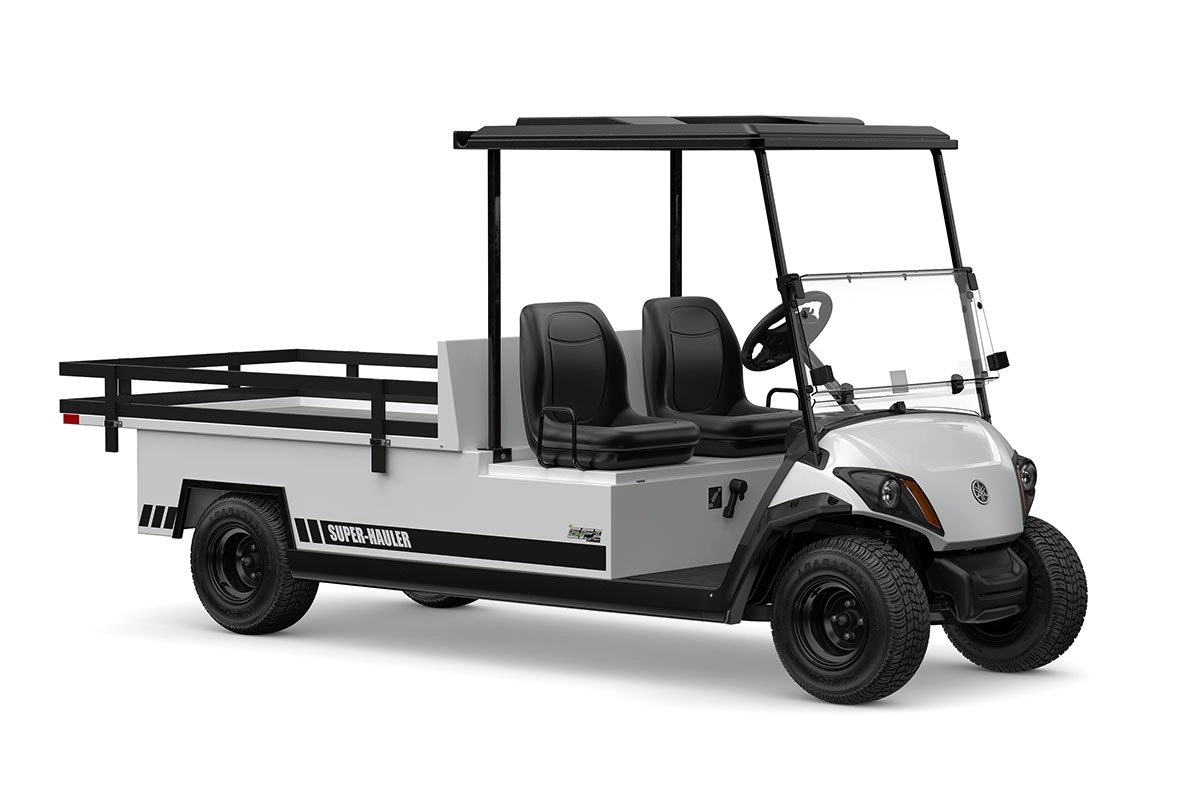

2027 ADVENTURER SUPER HAULER
SPECIFICATIONS
GENERAL
| Cargo Bed Capacity |
800 lbs. |
| Cargo Bed Size |
70 in (177.9 cm) L x 47.0 in (119.4 cm) W x 7.8 in (20.0 cm) H |
| Seating Capacity |
2 persons |
CHASSIS
| Suspension (Front) |
Tru-Trak II™ fully independent automotive-style strut suspension. |
| Suspension (Rear) |
Fully independent automotive-style strut suspension. |
| Brakes |
Self-adjusting mechanical, rear wheel drum brakes. |
| Tire Size |
205/65-10 DOT (4 ply rating) |
| Frame |
HybriCore™ Chassis features a robotically welded automotive ladder-style frame mated to a polypropylene structural floor. Frame components are protectedwith a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatically applied polyester/urethane powder topcoat. |
| Steering |
Self-compensating double reduction helical rack-and-pinion. |
DIMENSIONS
| Overall Length |
142.9 in (363 cm) |
| Overall Width |
53.5 in (136 cm) |
| Overall Height With Suntop |
48.8 in (124 cm) |
| Wheelbase |
98.0 in (249 cm) |
| Wheel Tread (Front) |
34.6 in (88 cm) |
| Wheel Tread (Rear) |
38.2 in (97 cm) |
| Dry Weight |
EFI: 893 lbs (405 kg) / AC (Less batteries): 758 lbs (344 kg) |
PERFORMANCE
| Max Forward Speed |
19 mph (30.5 km/h) |
| Min Turning Radius |
14.4 ft (4.4 m) |
ENGINE
| Fuel System |
EFI: EFI - Electronic Fuel Injection |
| Engine Type |
EFI: Yamaha-built, 402 cc, low-emission single cylinder 60° incline OHV |
| Motor |
AC/Li: 48-volt AC Motor |
| Batteries |
AC: Standard: Six 8-Volt Motive T875 / Li: One Lithium Ion Battery |
| Lubrication System |
EFI: Splash-style positive oil lubrication |
| Oil Capacity |
EFI: 1.16 U.S. quart (1.1 liter, 1100cc) |
| Air Cleaner |
EFI: Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge |
| Cooling System |
EFI: Forced Cooling |
| Starting System |
EFI: Starter generator with pedal start system |
| Motor Control Unit |
AC/Li: Toyota® Industries-built motor controller unit. |
| Output Rating |
AC: 4.4 hp (3.3 kW) / Li: 6.7 hp (5.0 kW) |
OTHER
| Available Model Colors |
Glacier |
| Available Seat Colors |
Black |
| Available SunTop Colors |
Black |
*Manufacturer's Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Curb Weight/Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
