UMAX Rally®
UMAX Rally®
All-Terrain Dump Bed Utility Vehicle

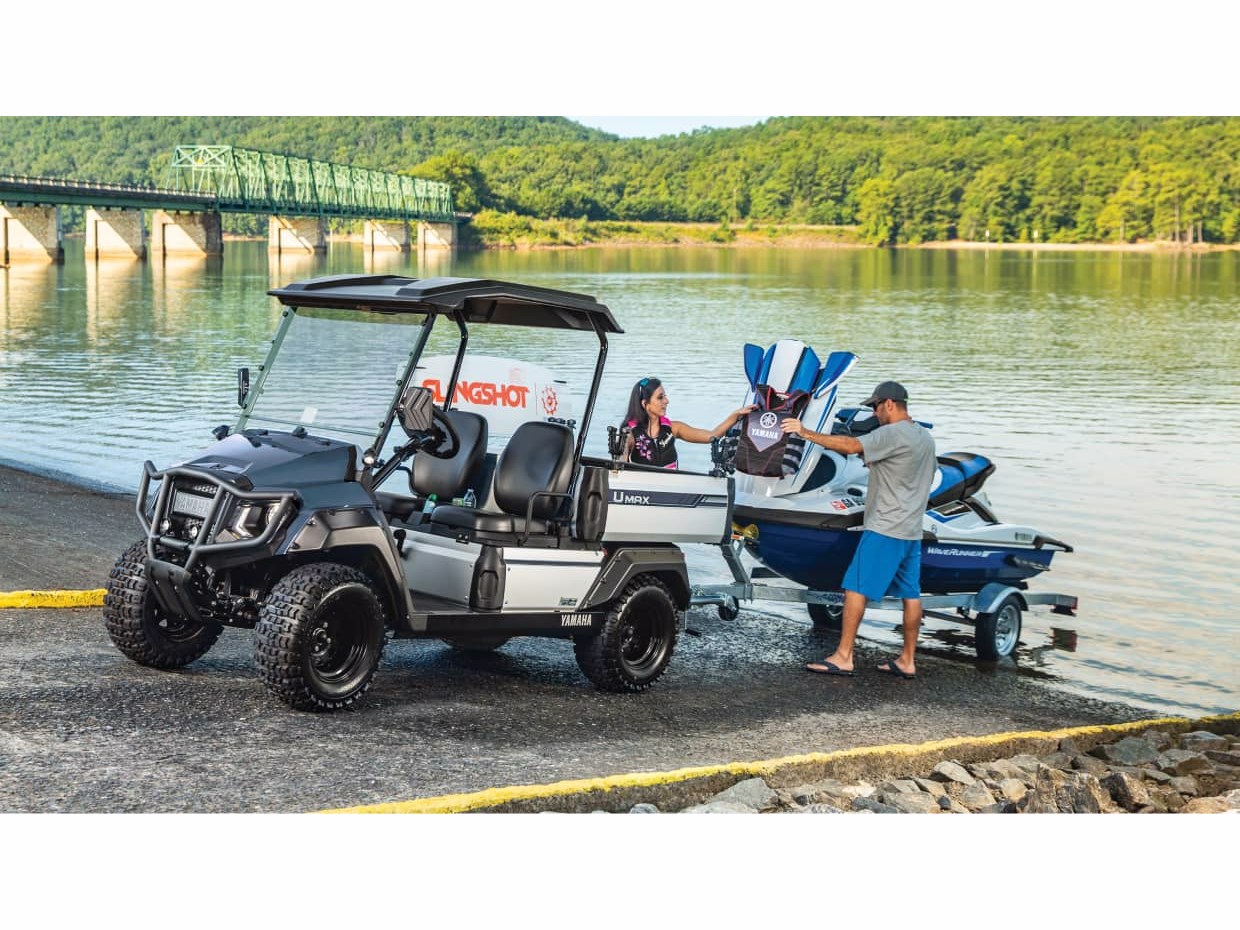

The UMAX Rally combines all the great features of the UMAX with a lifted suspension, 23” tires, front brush guard and deFender fender flares. Whether its for the farm, construction site, or campus, the UMAX Rally can do it all.
- Bluestone
- Carbon
- Coral Red
- Evergreen
- Glacier
Our UMAX lineup was expertly designed to get the job done. The UMAX Two EFI combines premium power and torque to deliver the performance you need for any job big or small. If gas works best for you, then trust our EFI powertrains to fit your needs with efficiency and reliability.
| Rear Suspension | Cradle-Smooth Suspension |
| Front Suspension | Independent Front Suspension |
| Yamaha-Built Engine | 402cc, low-emission single cylinder 60° incline OHV |
| Miles Per Gallon | 45 mpg |
| Easy Access Engine Compartment | Standard |
| Additional Features | Quiet Operation |
THE TRIFECTA OF SPEED, RANGE AND RELIABILITY
Combining Yamaha’s signature power and ruggedness with cutting-edge lithium technology, UMAX Li is the efficient, stress-free choice for your golf course or utility needs. With a maintenance-free battery that's built to last, it offers greater longevity, more efficient charging, and a longer driving range to keep you going all day.
| Rear Suspension | Cradle-Smooth Suspension |
| Front Suspension | Independent Front Suspension |
| Battery | Lithium-Ion |
| Toyota MCU | Standard |
| Power Production | 6.7 hp (5.0 kW) |
| Delta-Q Charger | Standard |
| Additional Features | Zero Maintenance - No Watering |
INNOVATIVE FEATURES AT EVERY TURN
UMAX Rally® SPECIFICATIONS
- Cargo Box Material: Aluminium
- Cargo Bed Capacity: 800 lbs.
- Towing Capacity: 1500 lbs.
- Cargo Bed Size: 41.1" L x 45.9" W x 11.8" H
- Curb Weight: EFI: 501 kg (1105 lb); LI: 537 kg (1184 lb)
- Tire Size: 23x10.5x12 6ply
- Seating Capacity: 2
- Available Model Colors: Glacier, Coral Red, Bluestone, Carbon, Evergreen
- Available Seat Color: Black
- Available Suntop Color: Black
- Overall Length: 122.6 in (311.3 cm)
- Overall Width: 53.5 in (136 cm)
- Overall Height(with suntop): 74.0 in (188 cm)
- Overall Height(without suntop): 50.7 in (128.8 cm)
- Wheelbase: 77.4 in (196.5 cm)
- Front Wheel Tread: 41.3 in (105.0 cm)
- Rear Wheel Tread: 41.3 in (105.0 cm)
- FRAME: HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat.
- STEERING: Self-compensating double reduction helical rack-and-pinion.
- FRONT WHEEL SUSPENSION: Tru-Trak II™ fully independent automotive-style strut suspension.
- REAR WHEEL SUSPENSION: Unit swing arm with heavy duty coil springs over hydraulic shock absorbers.
- BRAKES: Self-adjusting mechanical, front and rear wheel drum brakes.
- SEATING: 2 Persons
